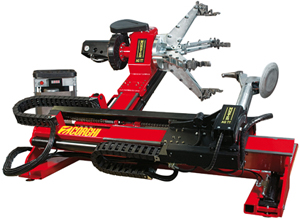

<Monster AG TT>


Together with the best of cutting edge technologies, Monster AG TT also integrates all the features that make it a fundamental and irreplaceable tool for the working quality and safety of industrial tyre operators.

Outstanding advantages in 5 strongholds:

1 ¡¤ Significant reduction in strain
2 ¡¤ High protection of rims and tyres
3 ¡¤ High performance
4 ¡¤ Maximum safety
5 ¡¤ Absolutely universal application

tool arm demounting system Leva la Leva
tool-rim tangency type Yes
automatic ¡°S.T.S¡± wheel turnover movement Yes
bead breaker patented hydraulic
axial travel 1120 mm
displacement axial speed 100 mm/s
operating axial speed 40 mm/s
maximum internal axial bead breaking force 30.000 N
maximum external axial bead breaking force 25.000 N
rotation hydraulic
clamping hydraulic
tool arm lift hydraulic
chuck holding carriage hydraulic axial stroke 670 mm
operating axial speed 70 mm/s
chuck clamping system hydraulic chucking system
rotation motor motoinverter
rotation speed
3-speed 1 - 3.5 - 7.8 RPM
maximum rotation torque 5.500 Nm
clamping unit 4 patented tilting jaws
clamping capacity from 14¡± to 58¡±
clamping positions 9
maximum clamping force 40.000 N
maximum hydraulic pressure 180 bar
maximum tyre diameter 2.500 mm
maximum tyre width 1.600 mm
maximum wheel weight 1.700 kg
minimum wheel centre hole ¨ª 90 mm
minimum working height to chuck shaft 450 mm
base wheel loading area floor level
hydraulic control unit ? electrical equipment Stand-by function Yes
display for setting wheel size in inches Yes
operation electric
motor 3,3 - 4 kw
adjustable hydraulic pressure from 80 to 180 bar
oil tank 15 lit.
power supply 3Ph 230/400 V ? 5 kW
operating noise level 63 dB (A)
controller transmission of commands via radio
emergency button Yes
voltage 24 V
weight 8 kg
dimensions length 2.400 mm
width 2.200 mm
maximum height 1.800 mm
weight 1.300 kg
